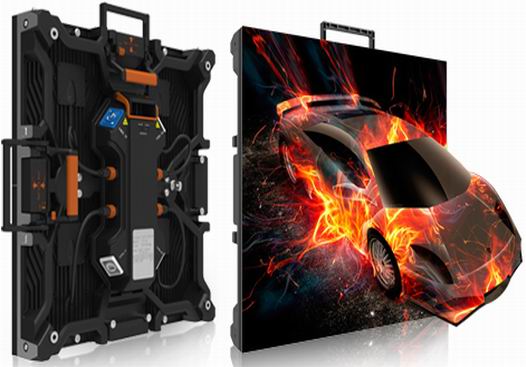

INTELLIGENT SPIDER SERIES
R4S / R6S
Pixel Pitch: 4.81mm/6.25mm- Module Size: 250*250*18mm

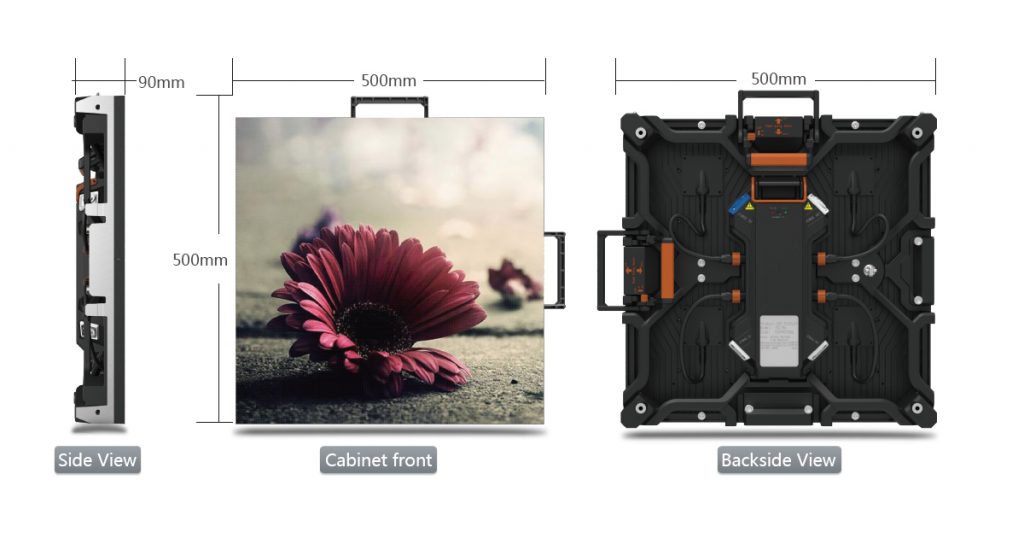

- Cabinet Size: 500*500*90mm
- Cabinet Weight: 9.5kg
| Module | R4S | R6S |
| Pixel Pitch | 4.81 mm | 6.25 mm |
| Brightness | ≤5000 nits | ≤5500 nits |
| Refresh Rate | ≥3000 Hz | ≥3000 Hz |
| Driving Method | 1/13 | 1/5 |
| Grey level | 65536 | 65536 |
| Color Display | 281 trillion | 281 trillion |
| LED Type | SMD2727 | SMD3535 |
| IP Grade | IP65/IP54 | IP65/IP54 |
| Power consumption(Max/Average) | 560/230 W/sq.m | 700/275 W/sq.m |
| Cabinet | ||
| Module Size (mm) | 250×250×17/18 mm | |
| Cabinet Size(mm) | 500×500×90 mm | |
| Cabinet Material | Die-casting Aluminum | |
| Cabinet weight(kg) | 9 .5kg | 9.5 kg |
| Cabinet resolution | 104×104 Pixels | 80×80 Pixels |
| Pixel density | 43264 Pixels/sq.m | 25600 Pixels/sq.m |
| Application environment | ||
| Input AC power voltage | 110V-240V | |
| Working temperature | -20℃~50℃ | |
| Working humidity | 10%-95% | |
| Signal type(with video processor) | AV, S-Video, VGA, DVI, HDMI, SDI, DP | |
| Control distance | cat-5Lan cable:<1000m;single-mode fiber cable:<10kilometer | |
